DIN41612 Connector, 120pin, Female, 3row, Female, Right Angle, Board to Board

Product Attributes

Model No.: DFS-XX-XXX-D02

Brand: ANTENK

Interface Type: AC/DC

Housing: Plastic

Pin: Brass

Poles: Other

Application: Other

Certification: Other

Gender: Female

Material: Brass

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Other

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packing

Productivity: 100000K/month

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000K/month

Certificate: ISO9001

HS Code: 8536909000

Payment Type: T/T,Paypal,Western Union

Incoterm: FOB,CIF,EXW,FCA

Delivery Time: 10 Days

Packaging & Delivery

Selling Units:

Bag/Bags

Package Type:

bag packing,Tube packing, reel packing

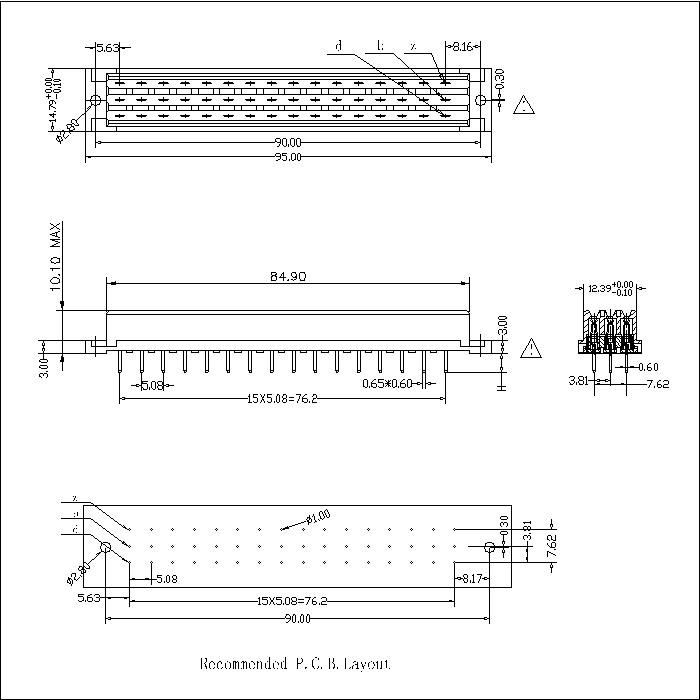

Shenzhen Antenk Electronics Co., Ltd. introduced a DIN41612 Vertical Female F Type High Power Connectors 48 Positions electronic product .

European socket is one of the connectors. According to the production and processing technology, there are many types of connectors. For example, the pin headers form a board-to-board connection system, the rubber pins form a wire-to-wire connection system, and the European sockets can form a wire. For the connection between the plates, the main signal is the electrical signal.

SPECIFICATION

Current Rating: 5.6Amp

Insulation Resistance: 1000MΩ min.at DC 500V

Contact Resistance: 20mΩ max

Withstand Voltage: AC 1000V For 1 Minute

Operating Temperature: -55°C to +105°C

Contact Material: Brass

Contact Plating: Au or Sn Over Ni

Insulator Material: PBT+30%GF UL 94V-0

Insertion Force: 75N max.

Withdrawal Force: 0.15N min.per individual contact

Looking for ideal Eurocard Vertical Female Connectors Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the DIN41612 High Power 48 Positions are quality guaranteed. We are China Origin Factory of DIN41612 Female48 Positions Connectors. If you have any question, please feel free to contact us.

Product Categories : PCB Connectors > Din41612 Connector
