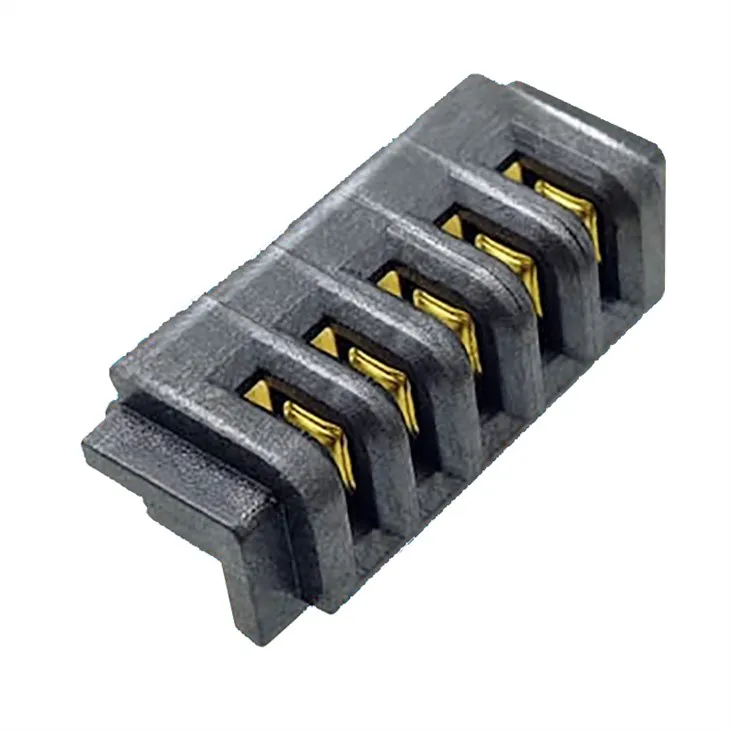

2.50 PITCHS 5 PIN BATTERYStraight FEMALE CONNECTOR

Antenk Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 2.50 pitchs 5 pin batterystraight female connector in China, also supports customized service. Welcome to wholesale bulk discount 2.50 pitchs 5 pin batterystraight female connector for sale here from our factory. Also, pricelist is available.

Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes
Model No.: ABT33-059BG0B

Brand: Antenk

Interface Type: D-SUB(VGA)

Housing: Plastic

Pin: Brass

Poles: Other

Application: Other

Certification: CE

Support Card Number: Other

Operating Frequency: High Frequency

Classification: Wired Broadband Connection

Inner Packing: Tray

Product Description

Manufacturer :ANTENK ELECTRONICS., CO. LTD.

High quality, competitive price, fast delivery, quick reply. UL, Rohs, Reach passed.

Enterprise slogan: a group of people, one heart, work together, will win
Corporate Mission: Connecting the World and Connecting the Future
Corporate Vision: Become the First Brand of Famous Connectors
Values: Diligence, Gratitude and Honesty

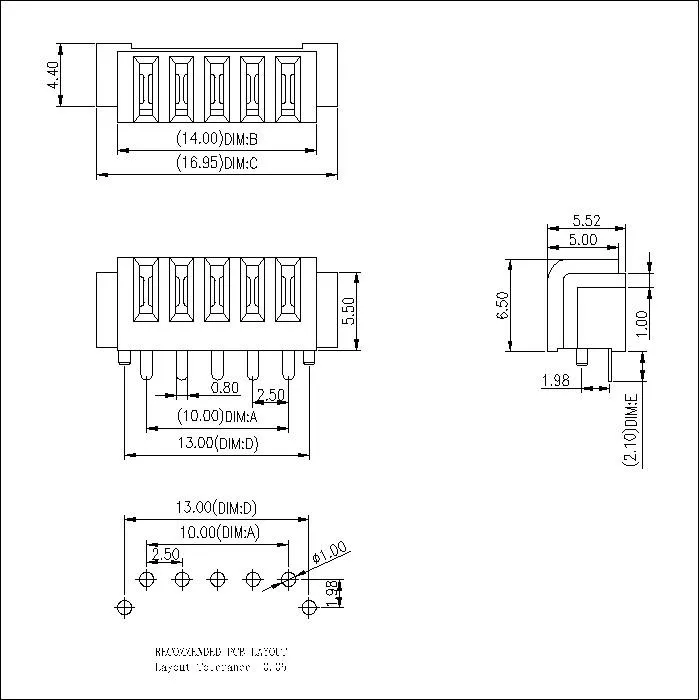

Product name：2.50 PITCHS 5 PIN BATTERY 180°FEMALE CONNECTOR

ABT33-059BG0B

SPECIFICATIONS:

1.CURRENT RATING:7 A
2.INSTANT CURRENT:10 A
3.WITHSTAND VOLTAGE:500 V
4.INSULATION RESISTANCE:100 ΜΩ MIN
5.CONTACT RESISTANCE:30 mΩ MAX
6.OPERATION TEMPERATURE:-40°C TO +125°C
7.INSULATOR:NYLON 9T(UL94V-0)
8.CONTACT:PhOSPHOR BRONZE
9.CONTACT PLATED:GOLD OVER NICKEL OR TIN

Q: What's your tem of the delivery?
A: Our ordinary delivery term is FOB Xiamen. We also accept EXW, CFR, CIF, DDP, DDU etc. We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.

Q: What's your after-sale service?

A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.
