0.4mm Board To Board Connector Male

Antenk Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 0.4mm board to board connector male in China, also supports customized service. Welcome to wholesale bulk discount 0.4mm board to board connector male for sale here from our factory. Also, pricelist is available.

Product Attributes

Model No.: BB0.4M-0.8XXX01 Brand: ANTENKInterface Type: AC/DCHousing: PlasticPin: BrassPoles: OtherApplication: OtherCertification: OtherGender: FemaleMaterial: BrassSupport Card Number: OtherOperating Frequency: High FrequencyClassification: Other

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packingProductivity: 100000K/monthTransportation: Ocean,AirPlace of Origin: ChinaSupply Ability: 100000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,CIF,EXW,FCADelivery Time: 10 Days

Packaging & Delivery

Selling Units:

Bag/Bags

Package Type:

bag packing,Tube packing, reel packing

Shenzhen Antenk Electronics Co., Ltd. launched a 0.4mm Board to Board connector,Male, mating Height=0.8mm electronic products

Variety of applications require different height versions of interconnect. Our scalable 0.6mm-1.0mm

Board To Board Connectors allow users to design interconnect solutions using the same footprint

pattern and module with different heights.

SPECIFICATIONS:

Current Rating:0.5A

Voltage Rating:50V AC/DC

Withstanding voltage:150V AC Ong minute

Contact Resistance:50milliohm Max

Insulation Resistance:100Megohm Min

Operation Temperature:-20°C to +105°C

Insulator:LCP (UL94V-0) Black

Contact Material:Phosphor Btonze

Contact plating:Au or Sn over Ni

Provides highly reliable data transmission and power transmission. They have a pitch of 0.40mm and a maximum mating height of 1.5mm. Full 360° shielding for closer proximity to the antenna, heat-resistant UL94 V-0 LCP housing, enhanced protection, 42 or 56 gold-plated copper alloy signal pins, single high data rate Performance contact points, four 2.2A gold-plated copper alloy power pins for power supply, and metal shield springs for reliable EMI shielding, multiple ground connections and increased connector retention

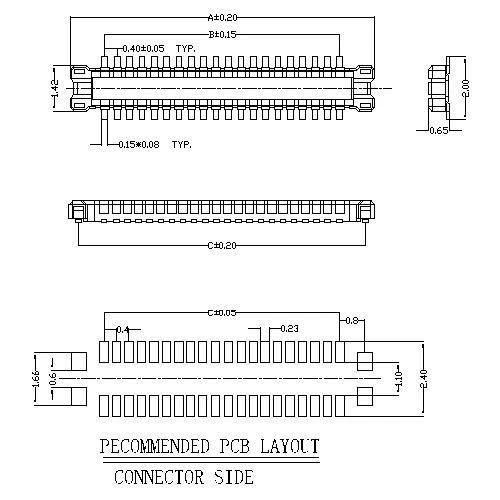

BB0.4M-0.8XXX01

specifications

1.Materlal:

1-1.Molded portion:LCP resin(ul94-0).

1-2.Contact and post:copper alloy.

2.Surface treatment:

2-1.Terminal portion;base;Ni plating surface;

Au plating(except the terminal tips);exposed nickel portions.

2-2.Metal Clips:base;Ni plating surface;Au flash plating

(except the terminal tips)or base;Ni plating surface;

Sn flash plating (except the terminal tips)

3.Characteristics:

3-1.Rated voltage:60V AC/DC

3-2.Rated curren:0.3A/contact(Max.5A at total contact)

3.3.Insulation resistance:Min.1000MΩ(initial)

3.4.Breakdown voltage:150V AC fou 1 min.

3-5.Saltwater spray resistance(header and socket mated:24 hours,

insulact resistance max.90mΩ.

3-6Contact resistance:Max.90mΩ.

3-7.Ambient temperature:-55℃~+85℃.

3-8.Storage temperature:-55℃~+88℃(product only);

-40℃~+50℃(emboss packing).

3-9.Composite insertion force:Max.0.918N/contacts X contacts(initial).

3-10.Composite removal force:Min.0.165N/contacts X contacts.

3-11.Post holding force:Min.0.49N/contacts.

3-12.Insertion and removal life:50times.

Specif tiom

1 Current Rating:1.0A AC/DC

2 Voieage Rating:300V AC/DC

3 Operating Temperature:-55°C To +125°C

4.Operating Humidity:90% To 95%

5.Withstanding Voltage:500VAC

Q: How many different types of products your company manufactures?A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

 Q: How long is your delivery time?A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.  Q: Do you provide sample ? Is it free? A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.

BB0.8F-XXXX02
