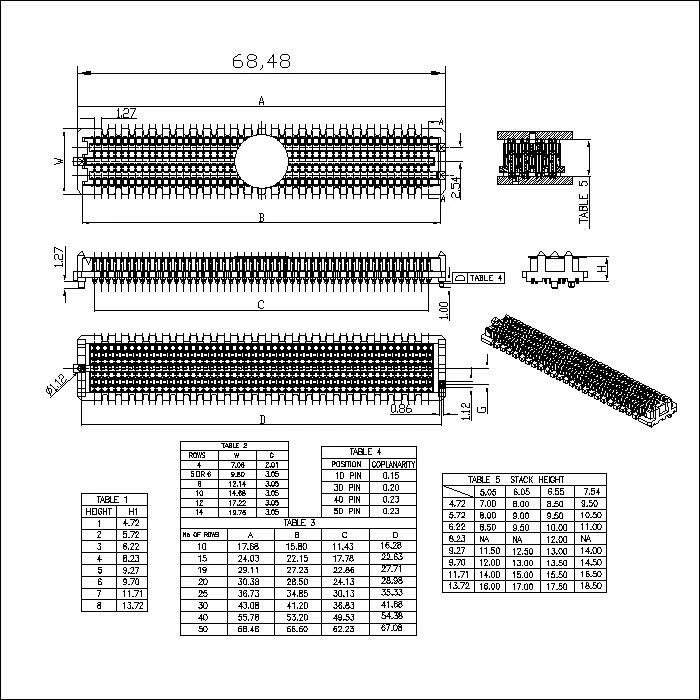

1.27 Board To Board Male Plug Connector BB1.27

Antenk Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 1.27 board to board male plug connector bb1.27 in China, also supports customized service. Welcome to wholesale bulk discount 1.27 board to board male plug connector bb1.27 for sale here from our factory. Also, pricelist is available.

Product Attributes

Model No.: BB1.27-MXXXXXBX05  Brand: ANTENK

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packingProductivity: 100000K/monthTransportation: Ocean,AirPlace of Origin: ChinaSupply Ability: 100000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,CIF,EXW,FCADelivery Time: 10 Days

Packaging & Delivery

Selling Units:

Bag/Bags

Package Type:

bag packing,Tube packing, reel packing

Shenzhen Antenk Electronics Co.,Ltd. launched a 1.27 Board To Board Male Plug Connector

BB1.27-MXXXXXBX05

Specifications:

Current Rating:1A Max.

Volage Rating:240V AC

Operating Temp.:-55°C ~ +125°C

Operating Humidity Range:90% To 95%

Withstanding Voltage:700V AC/Minute

BB0.4M-1.5XXX03

1). We are in Shenzhen,the hometown of chinese electric.We can provide you the most competitive products.

2). We have sampling more than 8000 types of products for our custom in the past 14 years.

3).There is a a pool of experienced, sophisticated work of the top technical talent, and use of advanced automated production equipment, full assurance of the quality of the products.

4). Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa andSouth America.

specifications

1.Materlal:

1-1.Molded portion:LCP resin(ul94-0).

1-2.Contact and post:copper alloy.

2.Surface treatment:

2-1.Terminal portion;base;Ni plating surface;

Au plating(except the terminal tips);exposed nickel portions.

2-2.Metal Clips:base;Ni plating surface;Au flash plating

(except the terminal tips)or base;Ni plating surface;

Sn flash plating (except the terminal tips)

3.Characteristics:

3-1.Rated voltage:60V AC/DC

3-2.Rated curren:0.3A/contact(Max.5A at total contact)

3.3.Insulation resistance:Min.1000MΩ(initial)

3.4.Breakdown voltage:150V AC fou 1 min.

3-5.Saltwater spray resistance(header and socket mated:24 hours,

insulact resistance max.90mΩ.

3-6Contact resistance:Max.90mΩ.

3-7.Ambient temperature:-55℃~+85℃.

3-8.Storage temperature:-55℃~+88℃(product only);

-40℃~+50℃(emboss packing).

3-9.Composite insertion force:Max.0.918N/contacts X contacts(initial).

3-10.Composite removal force:Min.0.165N/contacts X contacts.

3-11.Post holding force:Min.0.49N/contacts.

3-12.Insertion and removal life:50times.

Specifications:

Vlotag Rating:50V AC(rms)/DC

Current Rating:0.5A AC(rms)/DC

Contact Resistance:50milli ohm Max.

Insulation Resistance:100M ohm min

Dlelectric Withstanding Voltage:200V AC rms

Operting Temperature:-30℃~ +80℃

Materirls

Housing:High Temperature Plastic UL94V-0

Terminal:Copper Alloy

Material:PA9T

Contact: phosphor Bronae,Gold Plating;

BB1.27-MXXXXXBX05

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

 Q: How many different types of products your company manufactures?A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

 Q: How long is your delivery time?A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.  Q: Do you provide sample ? Is it free? A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
