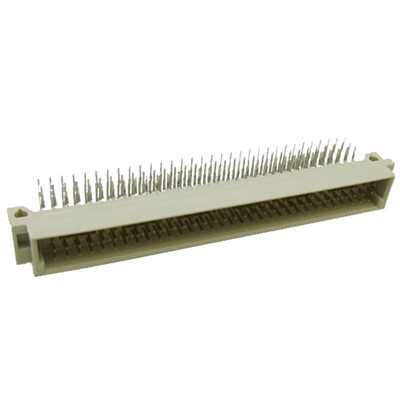

DIN41612 Right Angle Female Connectors 30 Positions

Product Attributes

Model No.: DFR-XX-XXX-320Brand: ANTENKInterface Type: Ac/DcHousing: PlasticPin: BrassPoles: OtherApplication: OtherCertification: OtherGender: FemaleMaterial: BrassSupport Card Number: OtherOperating Frequency: High FrequencyClassification: Other

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packingProductivity: 100000K/monthTransportation: Ocean,AirPlace of Origin: ChinaSupply Ability: 100000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:

Bag/Bags

Package Type:

bag packing,Tube packing, reel packing

Shenzhen Antenk Electronics Co., Ltd. introduced a DIN41612 Right Angle Female Type 1/3R Connectors 30 Positions electronic product .

Din 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardisation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together.The female type and male type is usually used together.we have 2.54mm and 5.08mm pitch for your good choice.

SPECIFICATION

Current Rating: 2.0Amp

Insulation Resistance: 100000MΩ min. at DC 100V

Contact Resistance: 20MΩ max

Withstand Voltage: AC1000V For 1 Minute

Operating Temperature: -55°C to +105°C

Contact Material: Brass

Contact Plating: Au or Sn Over Ni

Insulator Material: PBT+30%GF UL 94V-0

Insertion Force: 30 pin max.28N

Withdrawal Force: 0.15N min.per individual contact

Q: How many different types of products your company manufactures?A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

 Q: How long is your delivery time?A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.  Q: Do you provide sample ? Is it free? A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
