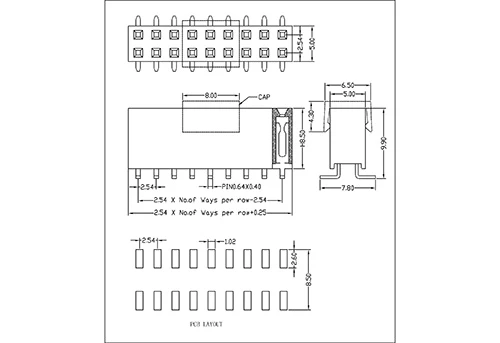

2.54mm Female Header Dual Row SMT TypeH8.5

Antenk Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 2.54mm female header dual row smt typeh8.5 in China, also supports customized service. Welcome to wholesale bulk discount 2.54mm female header dual row smt typeh8.5 for sale here from our factory. Also, pricelist is available.

Product Attributes

Model No.: FHEM14-XXX Brand: ANTENKInterface Type: D-SUB(VGA)Housing: PlasticPin: BrassPoles: 8-16Application: Military AviationCertification: CEGender: FemaleMaterial: BrassSupport Card Number: All in OneOperating Frequency: High FrequencyClassification: Fine Pitch Connectors

Supply Ability & Additional Information

Packaging: TRAY PACKING and TUBE PACKINGProductivity: 100KKPCS/MonthTransportation: Ocean,Air,EXPRESSPlace of Origin: ChinaSupply Ability: 1Certificate: ISO9001-2015HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,EXW

Packaging & Delivery

Selling Units:

Bag/Bags

Package Type:

TRAY PACKING and TUBE PACKING

Manufacturer :ANTENK ELECTRONICS.,CO LTD.

High quality, competitive price, fast delivery, quick reply. CE, Rohs, Reach passed.

A female Header is a type of connector. It is a kind of universal connection device that widely used in electronics, electrical appliances, meters instrumentation, etc.

A female connector is a type of connector that consists of a jack into which a male connector can be inserted. It is usually present at the end of a cable or other hardware such that a secure physical and electrical connection between two or more devices is made possible. A male connector can be converted into a female connector and vice versa by a tool called a gender changer.

SPECIFICATION

Current Rating: 3.0 Amp

Insulation Resistance: 1000M ohms min

Contact Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Operating Temperature: -65°C to +125°C

Contact Material: Brass

Insulator Material: PBT,UL 94V-0 Black

SPECIFICATION

Current Rating: 3.0 Amp

Insulation Resistance: 1000M ohms min

Contact Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Operating Temperature: -65°C to +125°C

Contact Material: Brass

Insulator Material: PBT,UL 94V-0 Black

ANTENK components do offer in addition to this program the possibility to connect pcbs in sandwich style on top of each other by using so called "sandwich pin headers". These connectors do have two insulator bodies (position of the insulator can be fixed according to request) and will be soldered at both contact ends into the pcb. Male and female headers are available with straight or right-angle contacts, with SMT (surface mount technology) or with THT (trough hole technology) contact styles, using different contact lengths, round or square contacts. ASSMANN WSW components offers in addition to the "of the shelf program" a sample service, which has been installed especially for short term design-ins, shipment within 3-5 days after receipt of order. The following pages do show the standard product range of male and female headers. Beside that, a lot of special or custom specific headers are available or can be produced upon request.

SPECIFICATION

Current Rating: 3.0 Amp

Insulation Resistance: 1000M ohms min

Contact Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Operating Temperature: -65°C to +125°C

Contact Material: Brass

Insulator Material: PBT,UL 94V-0 Black

SPECIFICATION

Current Rating: 3.0 Amp

Insulation Resistance: 1000M ohms min

Contact Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Operating Temperature: -65°C to +125°C

Contact Material: Brass

Insulator Material: PBT,UL 94V-0 Black

SPECIFICATION

Current Rating: 3.0 Amp

Insulation Resistance: 1000M ohms min

Contact Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Operating Temperature: -65°C to +125°C

Contact Material: Brass

Insulator Material: PBT,UL 94V-0 Black

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

 Q: How long is your delivery time?A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.  Q: Do you provide sample ? Is it free? A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
