1.27mm Male Pin Headers Min Jumper

Antenk Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 1.27mm male pin headers min jumper in China, also supports customized service. Welcome to wholesale bulk discount 1.27mm male pin headers min jumper for sale here from our factory. Also, pricelist is available.

Product Attributes

Model No.: MNJ01-XXXXX Brand: ANTENKplace of origin: ChinaInterface Type: AC/DCHousing: PlasticPin: BrassPoles: OtherApplication: OtherCertification: OtherGender: OtherMaterial: BrassSupport Card Number: OtherOperating Frequency: High FrequencyClassification: Other

Supply Ability & Additional Information

Packaging: bag packing,Tube packing, reel packingProductivity: 2000K/monthTransportation: Ocean,Air,ExpressPlace of Origin: ChinaSupply Ability: 2000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,CIF,EXW,FCA

Packaging & Delivery

Selling Units:

Piece/Pieces

Package Type:

bag packing,Tube packing, reel packing

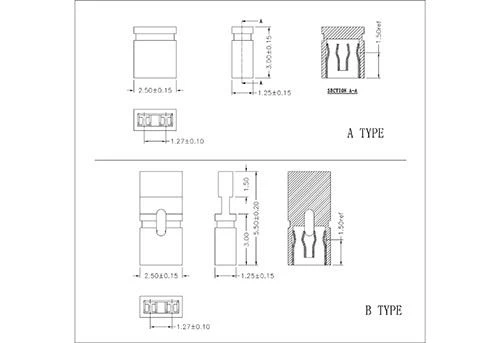

1.27mm Male Pin Headers & Min Jumper

NOTE:

MATERIAL:

1 INSULATOR:PBT+30%G.F (94V-0)

2 CONTACT PLATING:AU OR SN.OVER NI

3 CONTACT MATERIAL:PHORPHOS BRONZE

ELECTRICAL CHARACTERISTICS;

1 CONTACT RESISTANCE:20mΩ MAXIMUM

2 CONTACT CURRENT RATING:1.0AMP

3 DIELECTRIC WITHSTANDING VOLTAGE:1000V AC/MINUTE

4 INSULATION RESISTANCE 500mΩ MEGOHMS MIN

5 OPERATING TEMPEROTURE:-40°C ～ 105°C

Specifications:

Insulator: PPS

Fiammability: UL 94V-0

Sleeve: Brass

Mating pin ∅: 0.45 mm

Mechanical life: min 500 cycles

Rated cument: 1A

Contact resistance: max 10 mΩ

Dielectric strength: min 1000V RMS

SPECIFICATION

Current Rating: 3 Amp

Insulation Resistance: 1000M ohms min

Contact Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Operating Temperature: -65°C to +125°C

Contact Material: Brass

Insulator Material: PBT,UL 94V-0 Black

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

 Q: How long is your delivery time?A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.  Q: Do you provide sample ? Is it free? A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.

Q: What is your term of payment?

A: 30% down payment before producing and 70% balance payment before shipping.

Q: Which payment form you can accept?

A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
