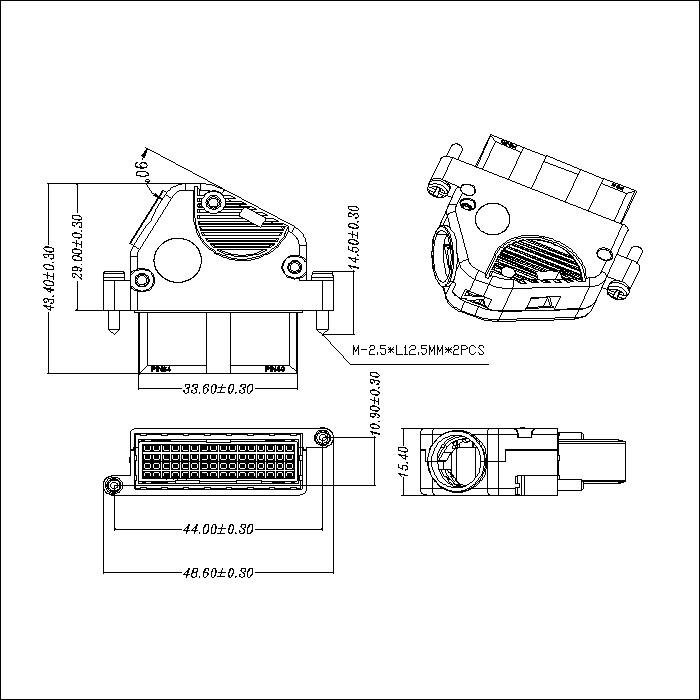

2.00MM VDSL 64P IDC Cable Connector

Antenk Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 2.00mm vdsl 64p idc cable connector in China, also supports customized service. Welcome to wholesale bulk discount 2.00mm vdsl 64p idc cable connector for sale here from our factory. Also, pricelist is available.

Product Attributes

Model No.: VDSL-4A64XCBS5X Brand: antenk64p: 64pin

Supply Ability & Additional Information

Productivity: 2000k/monthTransportation: Ocean,Air,ExpressPlace of Origin: shenzhen,chinaCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,EXW,CIF

Packaging & Delivery

Selling Units:

Piece/Pieces

Performance characteristics:

Main body part material

Insulator; PBT BLACK UL94V-0

Shroud housing: PBT BLACK UL94V-0

Terminal: Phosphor bronze, 1. 27um Ni under plated,

outer plating see part number rule

Cover: Zinc a11oy, Sn plated over a11.

Cable clamp: Steel, Sn plated over a11.

Screw: Stainless steel

Mechanical requirements

Insertion force: ≤0.75 N/pin

Extraction force: ≥0.15 N/pin

Wire gauge: AWG24/26; AWG28/30

Applicable standard: IEC61076-4-104

Style of installation: IDC Installation

1.27mm Series 68P Receptacle Headers Right-Angle Mount Pin Type

SPECIFICATIONS:

1.Electrical Characteristics:

1.1 Contact Current Rate:3AMP

1.2 Insulation Resisitance:500MΩ Minimum

1.3 Contact Resistance:25mΩ Maximum

1.4 Dielectric Voltage:500V AC For One Minute

2.Material:

2.1 Insulator:PBT+30%G/F

2.2 Contact:C5191-H

2.3 Board Lock:Brass

2.4 Bracket:Zinc Alloy

3.Finish:

3.1 Bracket:Nickel Plated

3.2 Contact:Gold Plated On Contact Area,Tin Plated

On Soldering End,Nickel Under-Plating

4.Enviroment:

Operation Temperature: -55°C To +125°C
