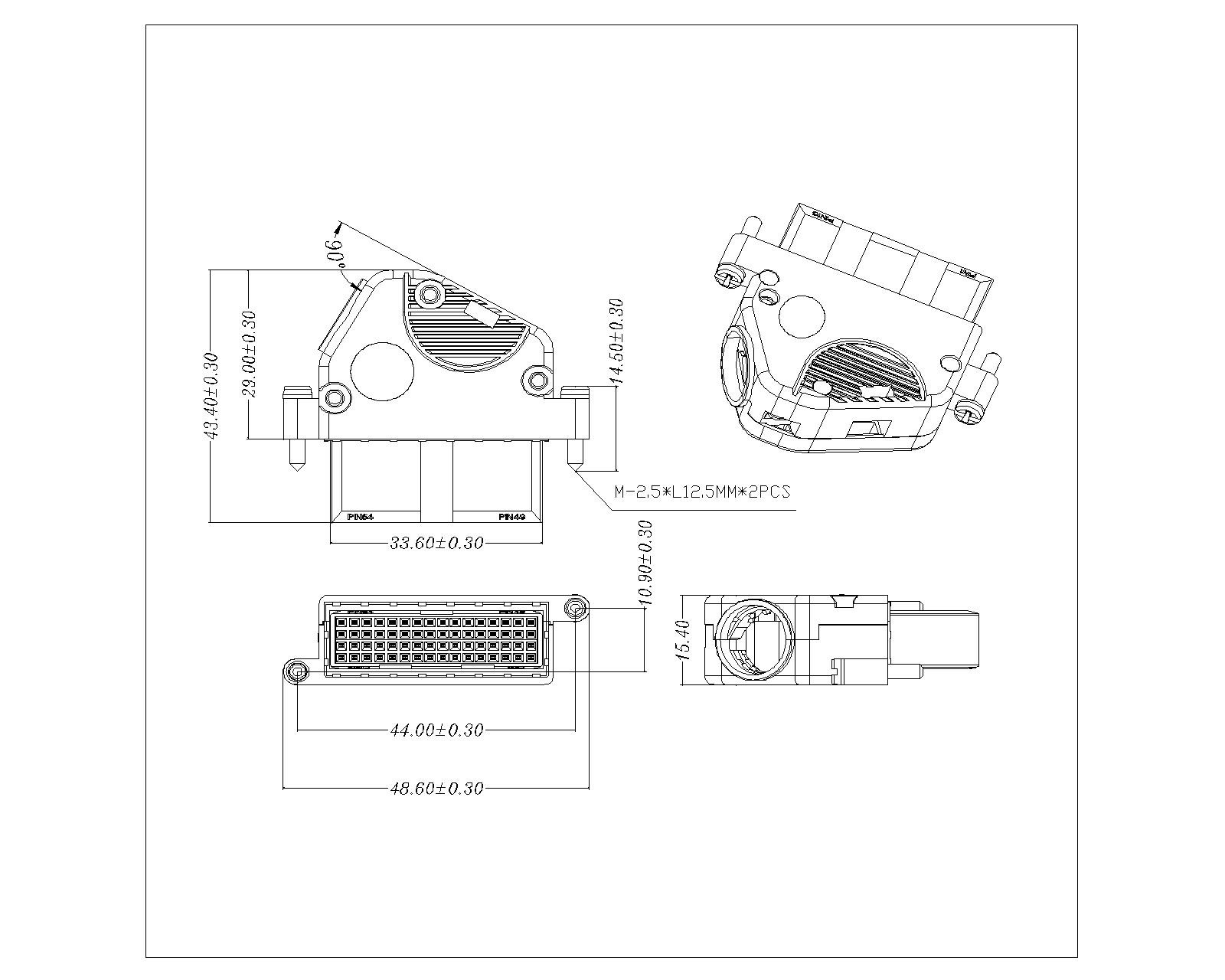

2.00MM VDSL 96P IDC Cable Connector

Product Attributes

Model No.: VDSL-4A96XCBS5X Brand: antenkplace of origin: Chinaspecies: Adapterapplication: Powergender: Female96p: 96pin

Supply Ability & Additional Information

Productivity: 2000k/monthTransportation: Ocean,Air,ExpressPlace of Origin: shenzhen,chinaSupply Ability: 2000k/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:

Piece/Pieces

Performance characteristics:

Electrical requirements:

Current rating: 1A

Contact resistance: ≤20 mΩ

Insulation resistance; ≥500 mΩ

Withstanding voltage: PIN T0 PIN: 1000 Vr.m.s, 1mA, 60s

PIN TO Ground:1500 Vr.m.s, 1mA, 60s

Environment specification

Working temperature: -55℃ ~+125℃

Packing & storing

Method of packing: Tray, inner box, outer box

Storing condition: temperature of -10℃ ~ +40℃

below 80% relative humidity

Style of installation: IDC Installation

1.27mm Series 68P Receptacle Headers Right-Angle Mount Pin Type

SPECIFICATIONS:

1.Electrical Characteristics:

1.1 Contact Current Rate:3AMP

1.2 Insulation Resisitance:500MΩ Minimum

1.3 Contact Resistance:25mΩ Maximum

1.4 Dielectric Voltage:500V AC For One Minute

2.Material:

2.1 Insulator:PBT+30%G/F

2.2 Contact:C5191-H

2.3 Board Lock:Brass

2.4 Bracket:Zinc Alloy

3.Finish:

3.1 Bracket:Nickel Plated

3.2 Contact:Gold Plated On Contact Area,Tin Plated

On Soldering End,Nickel Under-Plating

4.Enviroment:

Operation Temperature: -55°C To +125°C
